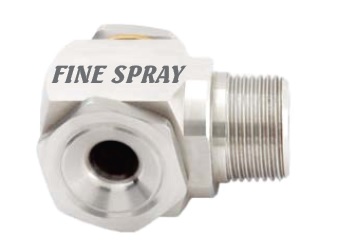

Tangential hollow cone nozzles are designed to produce a circular ring-shaped spray pattern, with the liquid distributed primarily along the outer edge. This nozzle type is particularly suited for applications that require precise coverage with minimal liquid usage, such as dust suppression, fire suppression, and cooling. The tangential inlet design induces a swirling motion in the liquid, creating the hollow cone spray without the need for internal vanes, reducing the risk of clogging. Tangential hollow cone nozzles are valued for their ability to deliver fine droplets and uniform coverage while maintaining high efficiency.

Spray Angle: 60, 90, 120

LPM Range: 1 to 175 (At 2 Bar)

Application:

· Humidification of air

· Dust control

· Foam control

· Cooling
